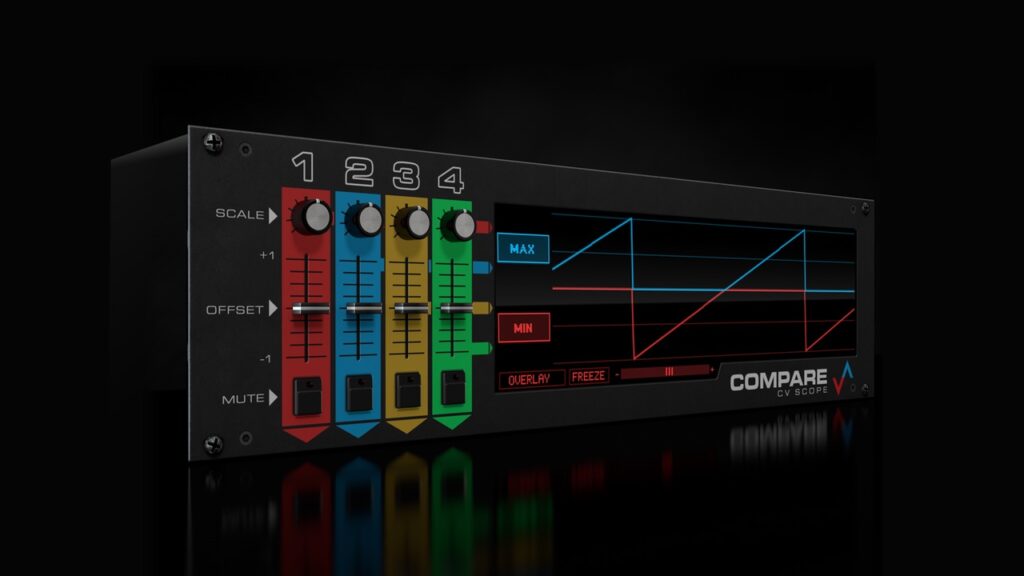

Compare CV Scope
4-channel CV visualizer
Rack Extension for Reason
- Great visualization of your CV signals
- Shape and transform the signals
- Freeze and Zoom
A visual CV processor that helps you visualize, tweak and combine your CV signals in real time.
Each of the four input channels come with their own set of controls to Scale, Offset and Mute the signals, with instant visual feedback in the CV Scope. All with full automation support, of course.
Compare anything
Apart from viewing all the signals on top of each other in the Overlay view, you can also instantly view the Minimum and Maximum values of all the inputs combined:
Or the Sum and Product of all inputs:
And you can also view the signals side by side in the Lanes view:
Outputs and inputs
Compare has eight CV outputs that are all available at the same time. One for each channel, and one for each of the combined signals: Minimum, Maximum, Sum and Product. There are also VCA Inputs for controlling channel level via CV.
See it in action

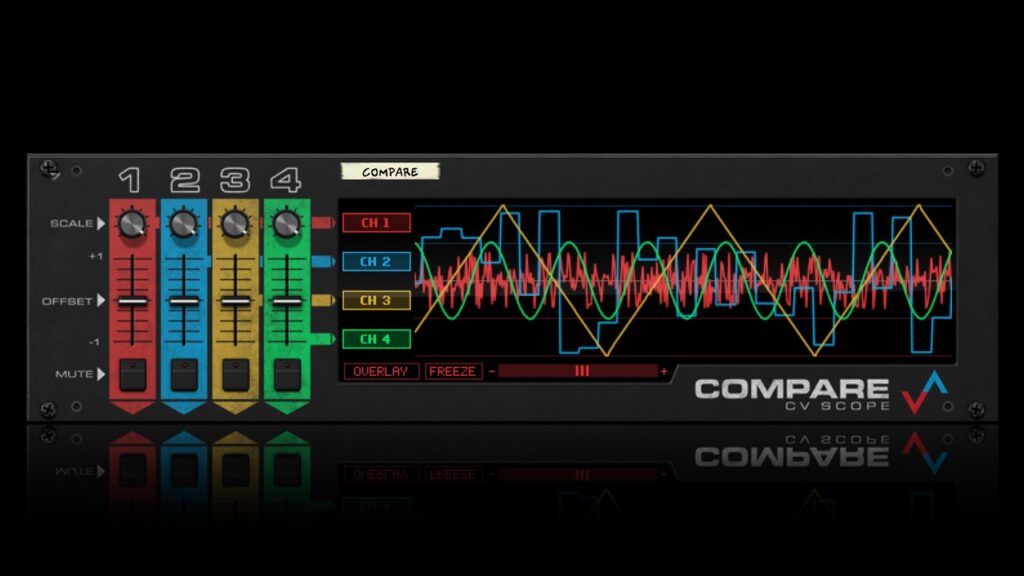

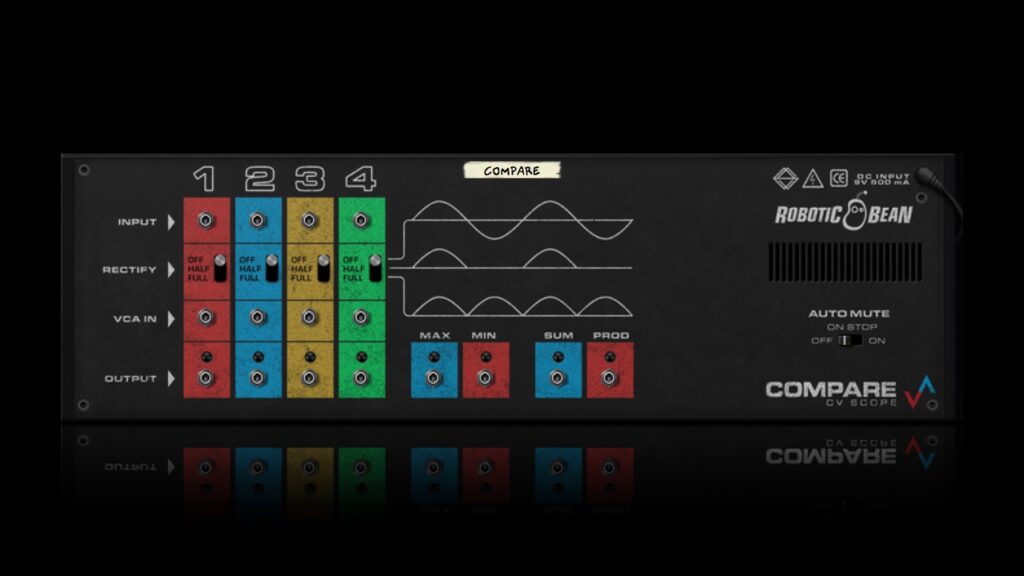

Front and back
Specifications
- 4 channel CV scope
- Lanes and overlay view modes
- The scope view can be frozen
- Horizontal zoom that ranges from 0.5s to 10s time span
- Per-channel controls: Scale, Offset and Mute
- Channel controls are fully automatable
- Separate output for each channel
- Four combined signal outputs: Min, Max, Sum, Product
- Half and full wave rectification for each channel input
VCA input for each channel - The combined signals are also visualized in the scope in real time
